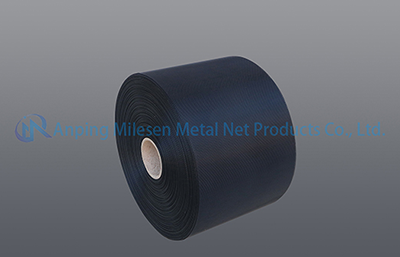

Epoxy Coated Mesh

Item 1

Raw Material: Low Carbon Steel or Plain steel wire /Aluminum Wire

Properties: stable mesh structure, easy to pleat, corrosion-resistant, high compatibility with different types of corrosive fluid, the coating layer is flexible and not easy to break and fall into the fluid cycle system.

Color: normally dark grey and black, other color can be customized

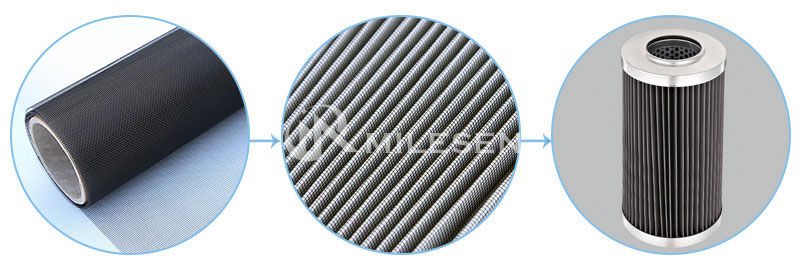

Application: Epoxy Coated Mesh as hydraulic filter and air filter supporting layer to backup filter paper or non woven cloth .which used to filter out the system of particulate debris and rubber impurities, to ensure the cleanliness of the hydraulic system and Air Filtration System.

The main specifications are as follows:

Mesh	Wire Diameter	Width	Length
14x14	BWG31/32	0.6 - 1.5 m	100-1000LF
16x14	BWG31/32	0.6 - 1.5 m	100-1000LF
16x16	BWG31/32	0.6 - 1.5 m	100-1000LF
18x14	BWG31/32	0.6 - 1.5 m	100-1000LF
18x16	BWG31/32	0.6 - 1.5 m	100-1000LF
18x18	BWG31/32	0.6 - 1.5 m	100-1000LF
20x20	BWG32/33	0.6 - 1.5 m	100-1000LF
22x22	BWG32/33	0.6 - 1.5 m	100-1000LF
28x28	BWG33/34	0.6 - 1.5 m	100-1000LF
30x30	BWG33/34	0.6 - 1.5 m	100-1000LF

Item 2

Raw Material: galvanized steel, stainless steel or Aluminum, then coated with epoxy coatings.

Properties: light weight, flexible, easy to clean, good-looking, adumbral, privacy protection, safety protection, color can be customized .

Application: used in hotels, public buildings, civil residences for decorative and safety protection purpose;

Main Specifications:

Mesh	Wire diameter	Width	Length
14x14	0.41mm	0.72m - 1.5m	30m
16x16	0.25mm	0.72m - 1.5m	30m
18X14	0.21mm	0.72m - 1.5m	30m
