Stainless Steel Square Mesh

Stainless Steel Square Wire Mesh is available in both woven and welded constructions, making it highly versatile for a wide range of applications including screen enclosures, railing infill panels, fan guards, and filtration systems.

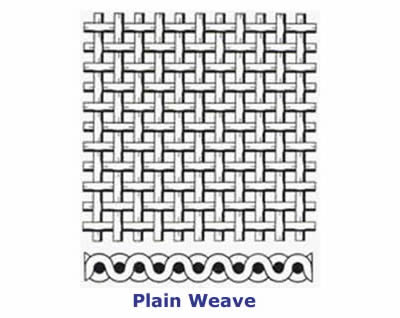

Plain Weave:

The plain weave is the most common pattern, with each weft wire alternating over and under the warp wire. This stable design is widely used in manufacturing, typically using wires of the same diameter in both directions for a uniform mesh structure.

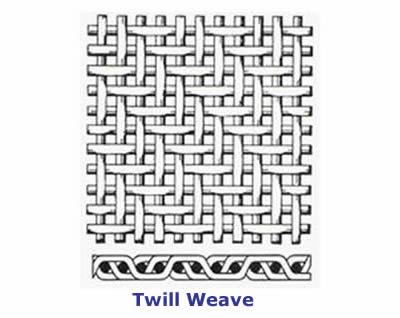

Twill Weave:

Twill weave alternates each wire under and over two warp wires, reducing deformation and allowing for thicker wires. This creates a stronger mesh, commonly used in finer meshes under 70 microns, but coarser options are also available.

Tensile Bolt Cloth:

This type of mesh features smaller wire diameters and is often used as screen mesh media. The mesh is available in square or rectangular patterns, offering flexibility for various applications. We ensure high-quality standards by adhering to ASTM E 2016-15 for mesh quality and ASTM A580-14 for raw material control.

Raw Material Grades:

304, 304L, 316, 316L，321, 310S, 202, 302, 430

Plain Weave Mesh (Normal Spec.)
Mesh count	Wire Dia		Width of Opening		Open area
Mesh count	Inches	mm	Inches	mm	%
1X1	0.157	4	0.84	21.4	71
4X4	0.063	1.6	0.187	4.75	56
8X8	0.043	1.1	0.08	2.08	42
10X10	0.039	1	0.06	1.54	36
12X12	0.023	0.584	0.06	1.52	51.8
14X14	0.023	0.584	0.048	1.22	45.2
16X16	0.018	0.457	0.0445	1.13	50.7
18X18	0.017	0.432	0.0386	0.98	48.3
20X20	0.016	0.406	0.034	0.86	46.2
24X24	0.014	0.356	0.0277	0.7	44.2
30X30	0.012	0.305	0.0213	0.54	40.8
35X35	0.011	0.279	0.0176	0.45	37.9
40X40	0.01	0.254	0.015	0.38	36
50X50	0.008	0.203	0.012	0.31	36
60X60	0.0075	0.19	0.0092	0.23	30.5
70X70	0.0065	0.165	0.0078	0.2	29.8
80X80	0.0055	0.14	0.007	0.18	31.4
100X100	0.0043	0.11	0.0055	0.14	32.15
120X120	0.0031	0.08	0.0046	0.132	38.77
150X150	0.026	0.06	0.0041	0.1041	37.4
180X180	0.002	0.05	0.0036	0.091	41.65
200X200	0.0021	0.05	0.0029	0.0737	35.49
250X250	0.0012	0.03	0.0028	0.0716	49.4
300X300	0.0012	0.03	0.00215	0.05467	41.67
325X325	0.0012	0.03	0.0019	0.0482	38.09
400X400	0.001	0.025	0.00152	0.0385	36.72

Twill Weave Mesh (Normal Spec.)
Mesh count	Wire Dia		Width of Opening		Open area
Mesh count	Inches	mm	Inches	mm	%
20	0.0236	0.6	0.02638	0.67	44.89
30	0.0177	0.45	0.01562	0.397	15.73
40	0.0118	0.3	0.01319	0.335	11.22
50	0.0098	0.25	0.01016	0.258	6.66
60	0.0094	0.24	0.00722	0.183	3.36
80	0.0071	0.18	0.00541	0.138	1.89
100	0.0059	0.15	0.00409	0.104	1.08
120	0.0047	0.12	0.00361	0.092	0.84
150	0.0031	0.08	0.00352	0.089	0.8
250	0.0016	0.04	0.00243	0.062	0.38
270	0.0016	0.04	0.00213	0.054	0.29
300	0.0016	0.04	0.00176	0.045	0.2
325	0.0014	0.035	0.0017	0.043	0.19
400	0.0012	0.03	0.00132	0.034	0.11
500	0.001	0.025	0.00102	0.026	0.07
635	0.0008	0.02	0.00079	0.02	0.04

Tensile Bolt Cloth Spec.
Mesh count	Aperature Size		Wire Dia.		Opening Area (%)	Weight (g/m²)
Mesh count	inch	mm	Inch	mm	Opening Area (%)	Weight (g/m²)
16×16	0.0535	1.36	0.009	0.229	73.3	8.38
18×18	0.0466	1.18	0.009	0.229	70.2	9.48
24×24	0.0342	0.869	0.0075	0.191	67.2	8.75
28×28	0.0282	0.716	0.0075	0.191	62.4	10.29
30×30	0.0268	0.681	0.0065	0.165	64.8	8.35
36×36	0.0213	0.541	0.0065	0.165	58.7	10.09
40×40	0.0185	0.47	0.0065	0.165	54.8	11.29
50×50	0.0145	0.368	0.0055	0.127	52.6	10.14
60×60	0.0122	0.31	0.0045	0.114	53.3	8.13
70×70	0.0106	0.269	0.0037	0.094	54.9	6.4
76×76	0.0095	0.241	0.0037	0.094	51.7	6.99
80×80	0.0088	0.224	0.0037	0.094	49.6	7.39
90×90	0.0076	0.193	0.0035	0.089	47.8	7.48
94×94	0.0071	0.18	0.0035	0.089	45	7.84
105×105	0.0065	0.165	0.003	0.076	46.9	6.41
120×120	0.0058	0.147	0.0025	0.064	47.3	5.07
165×165	0.0042	0.107	0.0019	0.048	47.1	4.04
200×200	0.0034	0.0864	0.0016	0.0406	46.2	3.48
230×230	0.0029	0.0737	0.0014	0.0356	46	3.06
