Stainless Steel Dutch Weave Mesh

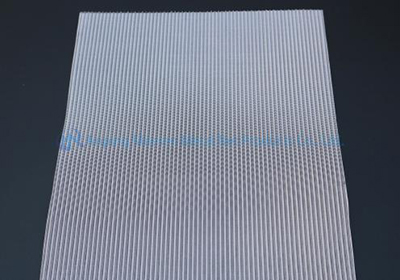

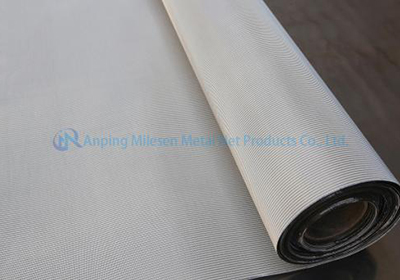

Dutch weave mesh is created by tightly weaving a limited number of warp threads with a maximum number of weft threads, resulting in a mesh with no visible apertures.

Types of Dutch Weave Mesh

Dutch weave mesh is categorized into two main types: Plain Dutch Weave Mesh and Twill Dutch Weave Mesh. Here’s how they differ:

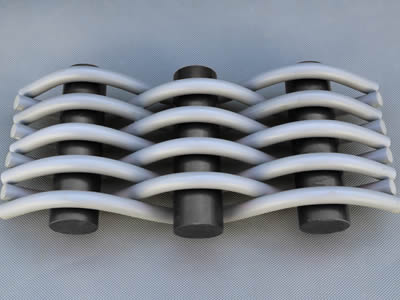

Advantages of Plain Dutch Weave Mesh:

Superior mechanical stability.

Smaller openings enhance filtration efficiency.

Thicker wires provide greater tensile strength.

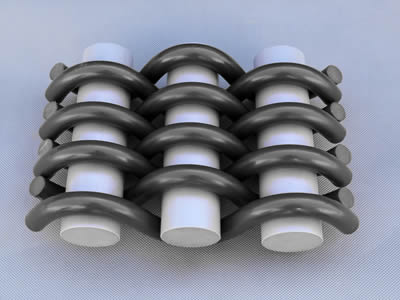

Advantages of Twill Dutch Weave Mesh:

Enhanced filtration performance.

Greater tensile strength.

Suitable for filtering ultra-fine materials.

More stable and durable structure.

Applications of Dutch Weave Mesh

Dutch weave mesh is predominantly used in filtration applications, offering superior filtering performance across various industries:

- Petrochemical

- Pharmaceuticals

- Mining

- Wastewater treatment

This mesh is particularly valued for its strength, durability, and efficiency in demanding filtration environments.

Specification of Plain Dutch Weave Mesh:

Plain Dutch Weave Spec.
Weaving method	Warp Count	Weft Count	Warp Wire (mm)	Weft Wire (mm)	Norminal (micron)
PDW	8	45	0.8mm	0.6mm	310
PDW	8	85	0.43mm	0.32mm	250
PDW	8	85	0.45mm	0.28mm	249
PDW	12	64	0.56mm	0.4mm	211
PDW	12	64	0.58mm	0.4mm	300
PDW	12	72	0.4mm	0.38mm	300
PDW	14	100	0.4mm	0.28mm	182
PDW	16	80	0.43mm	0.34mm	200
PDW	16	100	0.4mm	0.26mm	160
PDW	20	110	0.355mm	0.25mm	126
PDW	20	150	0.45mm	0.355mm	101
PDW	24	110	0.355mm	0.25mm	120
PDW	30	150	0.23mm	0.18mm	90
PDW	30	150	0.25mm	0.18mm	82
PDW	40	200	0.18mm	0.14mm	70
PDW	40	200	0.18mm	0.135mm	63
PDW	50	250	0.14mm	0.114mm	60

Specification of Twill Dutch Weave Mesh:

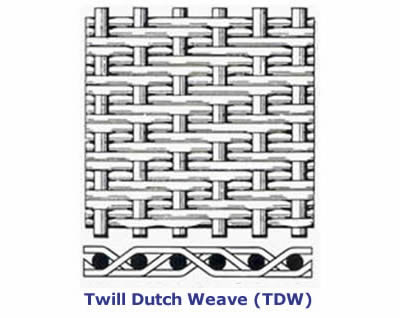

Twill Weave Mesh (Normal Spec.)
Weaving method	Warp Count	Weft Count	Warp Wire (mm)	Weft Wire (mm)	Norminal (micron)
TDW	80	400	0.125mm	0.071mm	40
TDW	80	700	0.1mm	0.077mm	25
TDW	80	700	0.112mm	0.08mm	29
TDW	80	700	0.125mm	0.04mm	40
TDW	130	1100	0.071mm	0.05mm	17
TDW	165	800	0.1mm	0.077mm	15
TDW	165	1400	0.063mm	0.04mm	13
TDW	165	1400	0.068mm	0.04mm	10
TDW	200	1400	0.068mm	0.04mm	5
TDW	203	1600	0.05mm	0.032mm	10
TDW	216	1800	0.045mm	0.03mm	10
TDW	325	2300	0.036mm	0.024mm	4
TDW	325	2300	0.036mm	0.025mm	2
TDW	400	2700	0.028mm	0.02mm	4
TDW	500	3500	0.025mm	0.015mm	3
