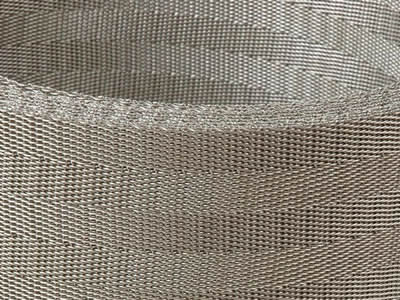

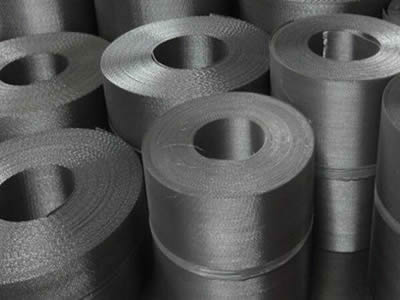

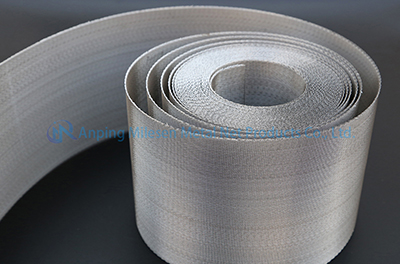

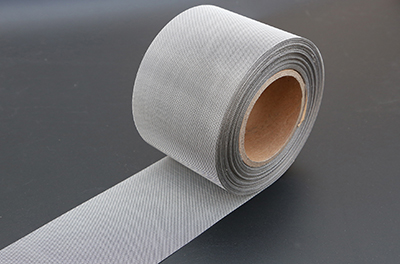

Stainless Steel Reverse Dutch Twill Weave Mesh

Reverse Dutch Weave Mesh is a specialized filtration mesh that combines thinner warp threads with thicker weft threads using a distinct weaving technique. This construction enhances the mesh’s strength, stability, and filtration efficiency, making it ideal for applications that demand ultra-fine filtration precision.

Characteristics of Reverse Dutch Weave Mesh

1. Exceptional Filtration Precision: The fine warp and robust weft threads effectively capture minute particles, ensuring high filtration accuracy.

2. Enhanced Durability: Constructed from stainless steel, this mesh is highly resistant to corrosion and wear, offering longevity and resilience in harsh environments.

3. Improved Flow Rates: The specialized weaving pattern optimizes fluid pathways, enabling a higher flow rate while maintaining effective filtration.

4. **Excellent Stability:** The thicker weft threads reinforce the structure, preventing deformation and ensuring the mesh remains stable under pressure.

5. Maintenance-Friendly: The smooth surface and durable build allow for easy cleaning and minimal upkeep, ensuring consistent performance over time.

This type of mesh is well-suited for industries like pharmaceuticals, petrochemicals, and water treatment, where high-precision filtration is critical.

Specification of Reverse Dutch Weave Mesh:

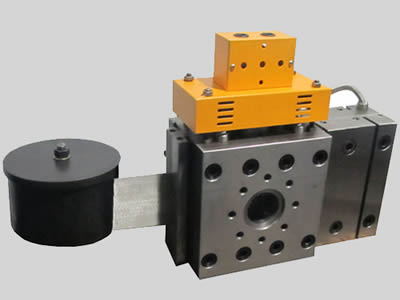

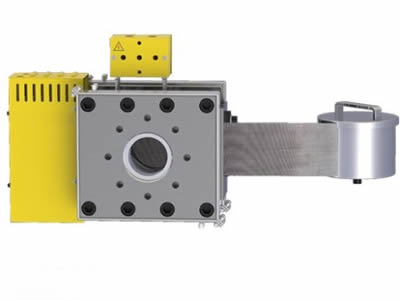

Popular Sizes of Continuous Belts Filter (Reverse Dutch Weave)
Warp Count Weft Count Wre Dia(mm) Filtration Data(micron) Wdth(mm) Length(mm)
48 10 0.5x0.5 400 40-210 10 or 20
63 18 0.4x0.6 220 40-210 10 or 20
73 15 0.45x0.55 250 40-210 10 or 20
100 16 0.35x0.45 190 40-210 10 or 20
107 20 0.24x0.60 210 40-210 10 or 20
120 16 0.35x0.45 180 40-210 10 or 20
132 17 0.32x0.45 170 40-210 10 or 20
152 24 0.27x0.40 160 40-210 10 or 20
160 17 0.27x0.45 160 40-210 10 or 20
170 18 0.27x0.45 160 40-210 10 or 20
171 46 0.15x0.30 130 40-210 10 or 20
180 20 0.27x0.45 170 40-210 10 or 20
200 40 0.17x0.27 120 40-210 10 or 20
240 40 0.15x0.25 70 40-210 10 or 20
260 40 0.15x0.27 55 40-210 10 or 20
290 76 0.09x0.19 40 40-210 10 or 20
300 40 0.15x0.25 50 40-210 10 or 20
